New Era offers a complete range of unwind equipment from economical single-position units to fully-automatic, high-speed flying splice systems. Our moving carriage design has become an industry benchmark for splicing performance.Regardless of new roll diameter, this system splices reliably at full line speed. All New Era unwinds are available with a number of options for maximizing production efficiency.
Four Spindle, Flying Splice Turret Unwind
  • Unique rotating idler roll system
  • Custom-designed machine for special applications

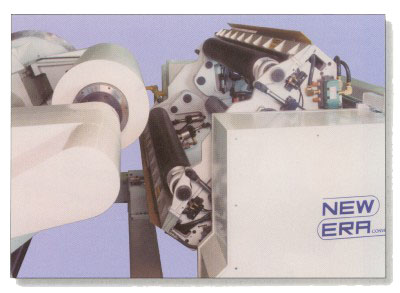

High-Speed Automatic Unwind

Our innovative "no-bounce" bump roll is constructed from graphite composite material. This is integrated with a special alloy knife holder which is stronger than steel yet ligher than aluminum. The resulting splice system is fast-firing with repeatable bump roll/knife cycle times. All of this is mounted in the industry's only cushioning system for the ultimate in high-speed splicing. Line speeds of up to 3000 fpm are achievable.

Also available is on-the-fly changeover from over mode to under mode. No downtime!
Automatic Turret Unwind
  • Features dual direction operation
  • Direction change is via pushbutton
  • Individually adjustable turret arms for spindle sidelay
  • C-Frame base with integral operator access platform
Two-Position Unwind with On-The-Fly Splicing
  • Economical unit features two, single position unwinds - each capable of shaftless chucking of various length cores
  • Each unwind is automatically guided and has automatic tension control
  • Centrally located splice assembly houses the bump roll and cutoff knife assembly
140" Face Turret Unwind with Automatic, Zero-Speed Splicing
  • New Era exclusive design featuring dual vacuum box assemblies, which perform a taped butt splice or sewn lap splice
  • Produces automatic splices at full line speed when used in tandem with New Era's wide range of accumulator systems
